Note:

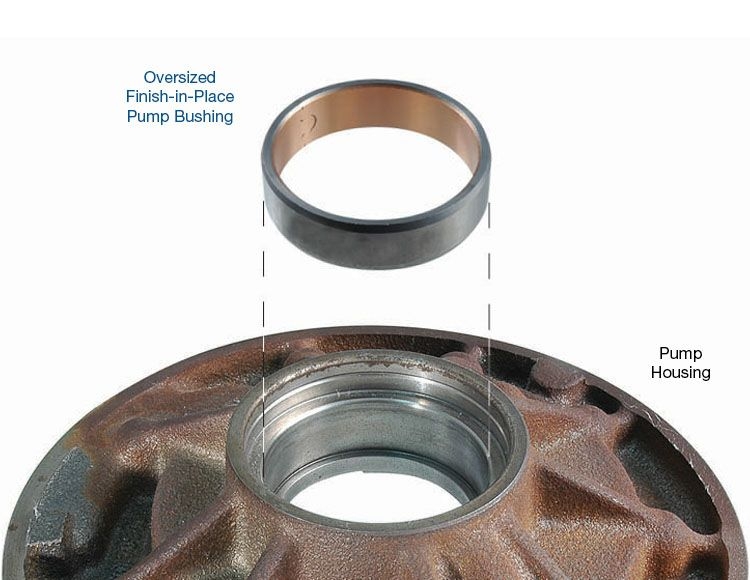

Oversized Pump BushingPart No. 85916-01U Normal operation of the ZF5HP19 transmission causes wear that leads to excessive bushing and shaft clearance. The Sonnax pump bushings 85916-01and 85916-01U contain one pump bushing each to allow rebuilders to salvage pumps with damaged bushing bores. Oversized precision bushing 85916-01 allows rebuilders to salvage costly pumps with damaged bushing bores. Oversized finish-in-place bushing 85916-01U allows rebuilder to salvage pumps with damaged bushing bores, and set clearance with converter hub. Tightly toleranced, bimetal. Note: Bushings are oversized precision bushings for damaged pump housings. The pump-housing bushing-bore ID will require machining. This ID will have to be machined to 1.9992 +/- .0005 (50.780mm +/- 0.013mm). Specs Material: Bimetal Bushing Style: Finish-in-Place Width: 0.533" Shaft Dia.: 1.774" Housing Bore: 1.999"
