R.case bush.C6/E4OD stand.[4]

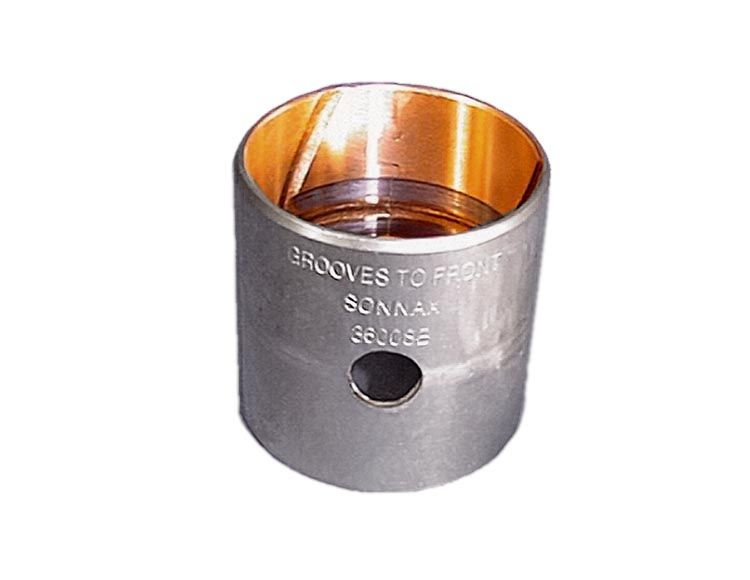

R.case bush.C6/E4OD stand.[4] Package Quantity: 4 Width: 1.620" Housing Bore: 1.593" Shaft Dia.: 1.466" Bushing Style: Precision Material: Steel-backed bimetal The OE rear case bushings in the Ford E4OD and 4R100 & C6 transmissions tend to wear out prematurely. Bushing failure may be due to lack of lubrication, excessive journal clearance, or too much load for a given bearing area. Replace the two OE bushings with Sonnax replacement bushing 36008B or 36008Dusing the Sonnax installation tool T36008A to draw the replacement bushing into place. Available for both 3-groove early design style and 4-groove late model designs. Both one-piece replacement bushings are an improvement over the OE two-bushing design because of their increased bearing surface area and superior lubrication characteristics. Case, one-piece, early No groove to back NOTE: On some C6 applications there may be a ridge of unmachined material which separate the two OE bushings. This area must be honed down to allow installation Required tool: T36008A
